Description

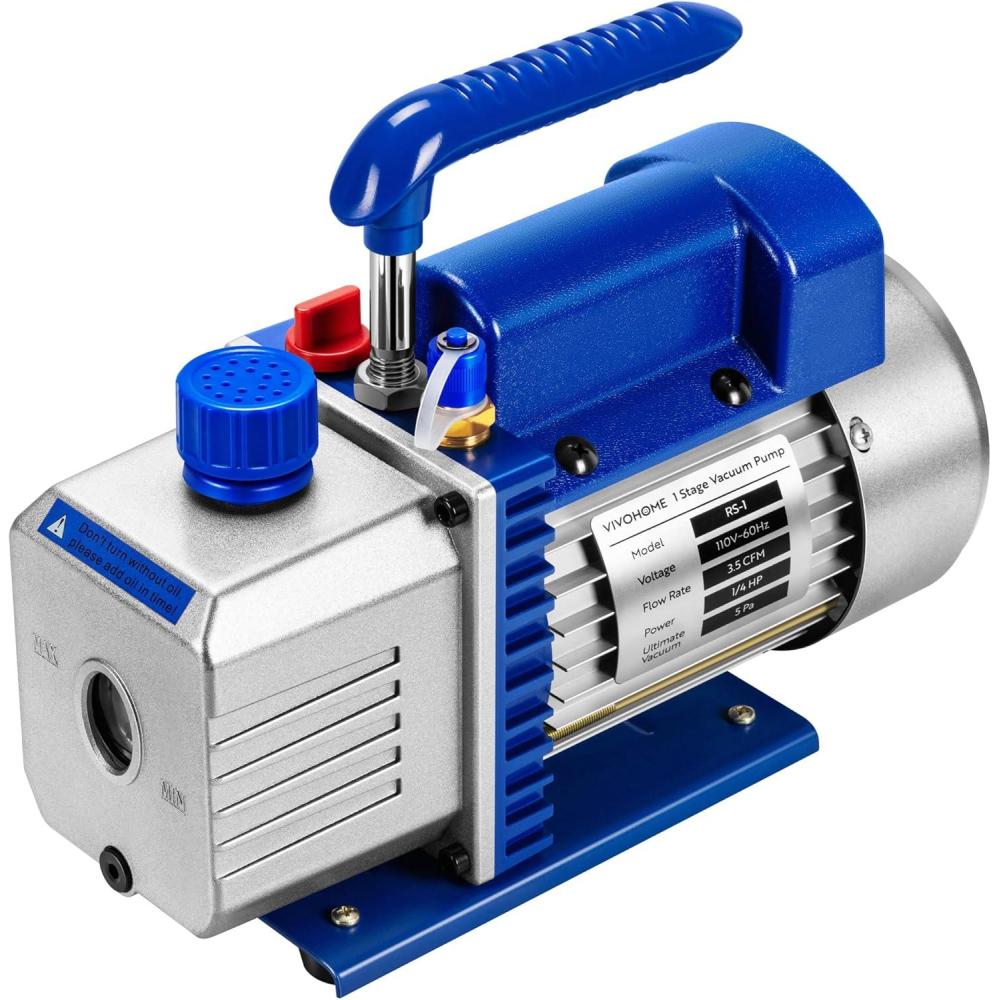

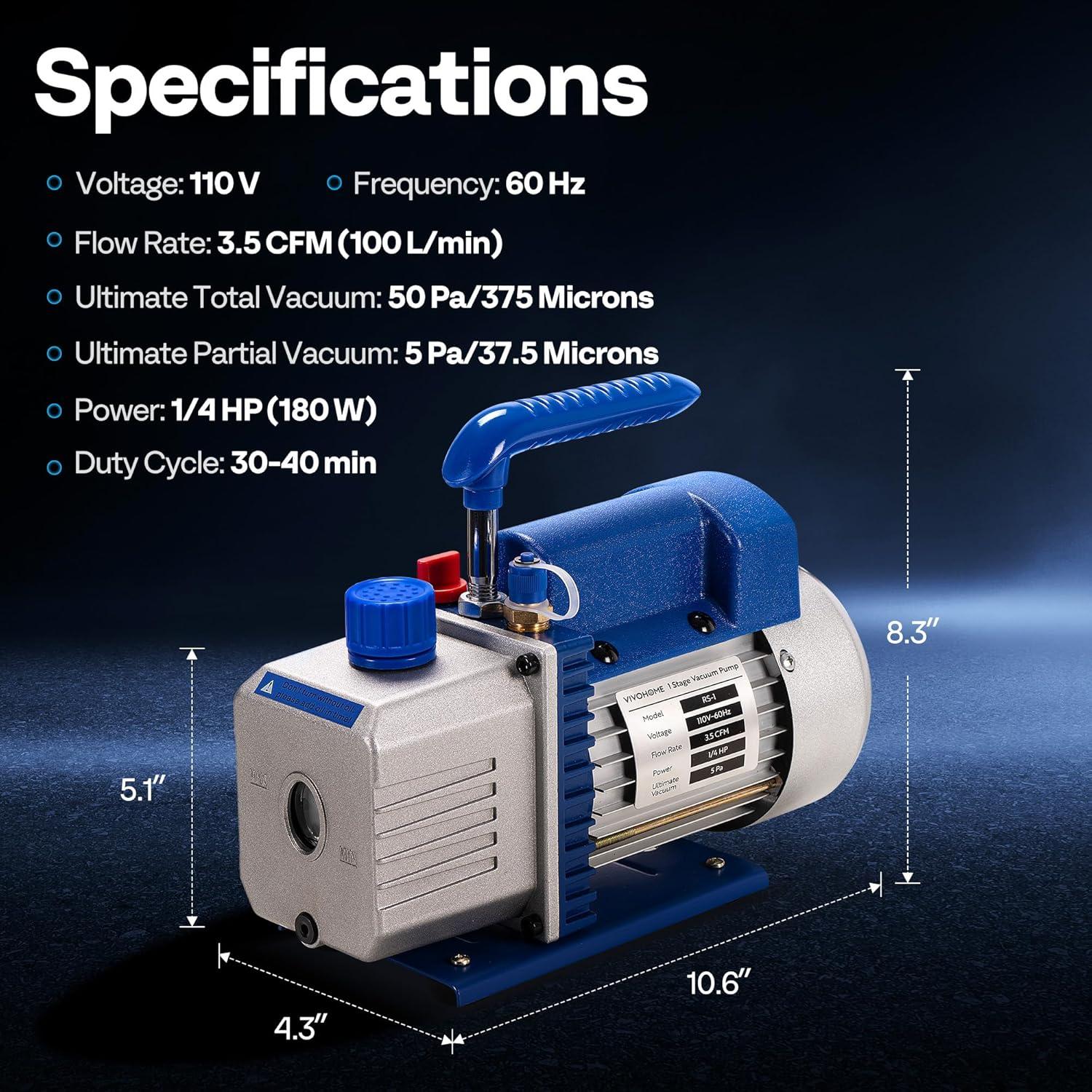

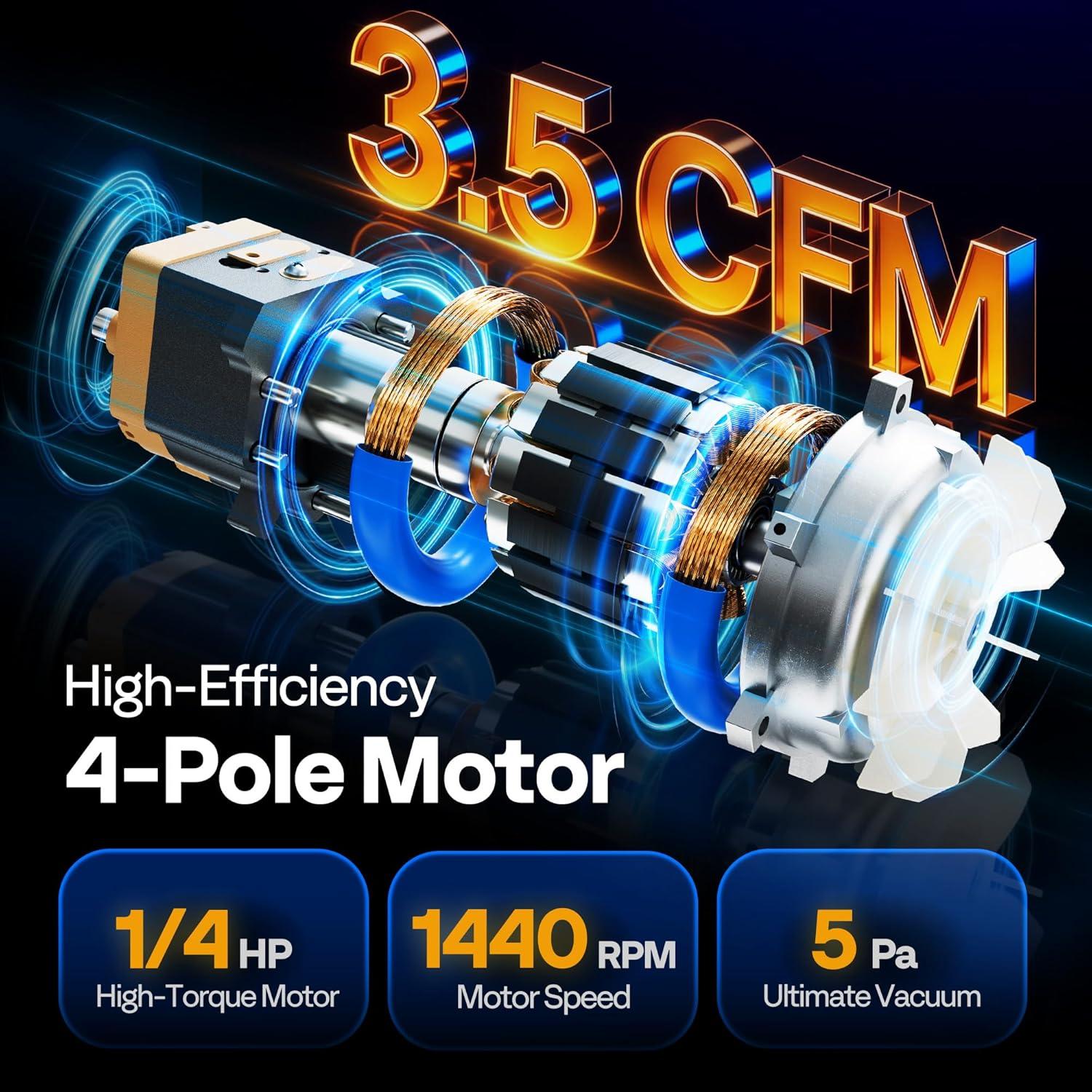

STABLE ROTARY VANE VACUUM PERFORMANCE: This single-stage rotary vane vacuum pump is powered by a 1/4 HP motor, delivering a 3.5 CFM flow rate and pulling systems down to 5 Pa to achieve proper evacuation before refrigerant charging in DIY HVAC applications

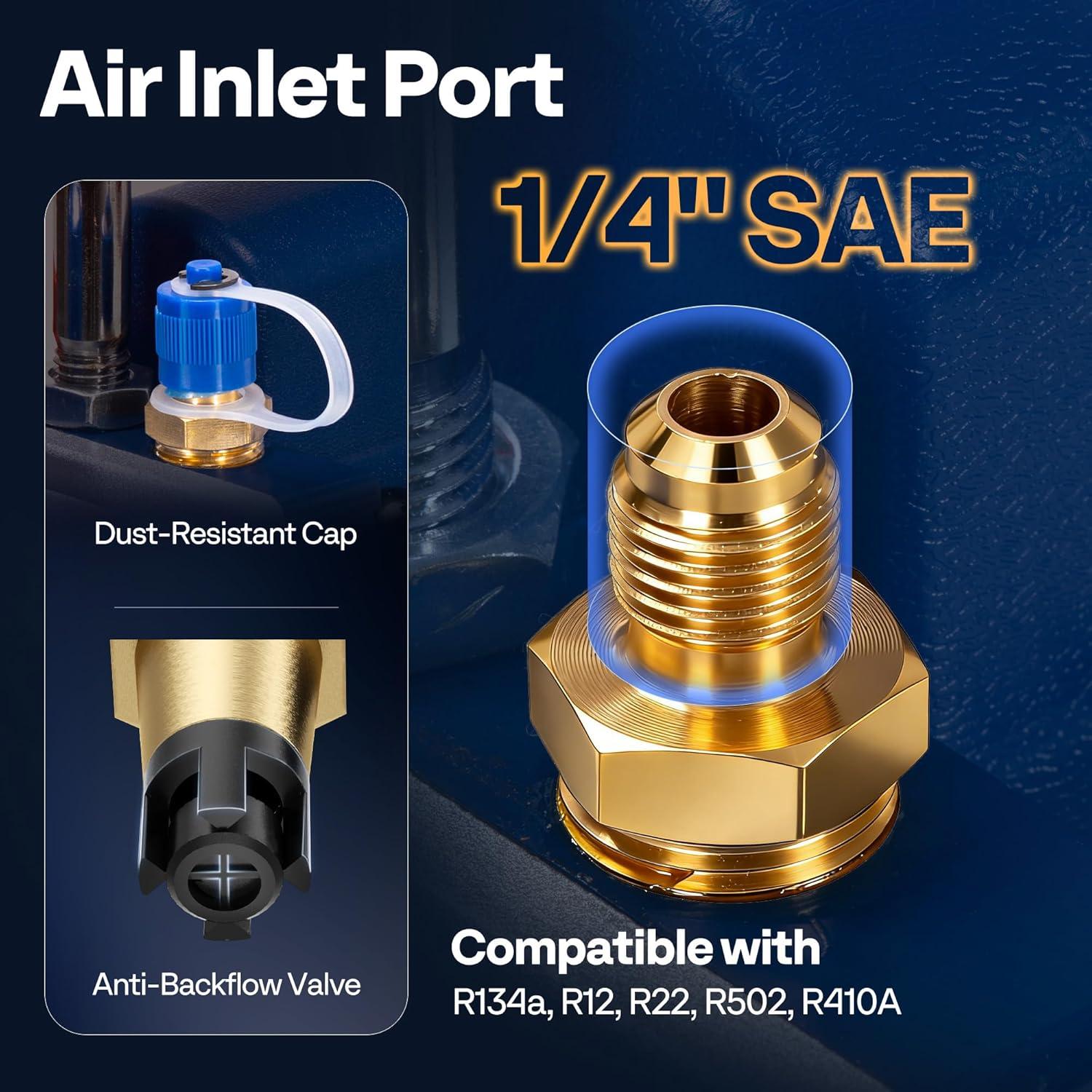

WIDE COMPATIBILITY: Equipped with a 1/4″ SAE inlet port, this rotary vane vacuum pump is compatible with R134a, R12, R22, R502, and R410a (with 5/16″ adapter, not included), providing flexible connections for auto A/C and mini split servicing

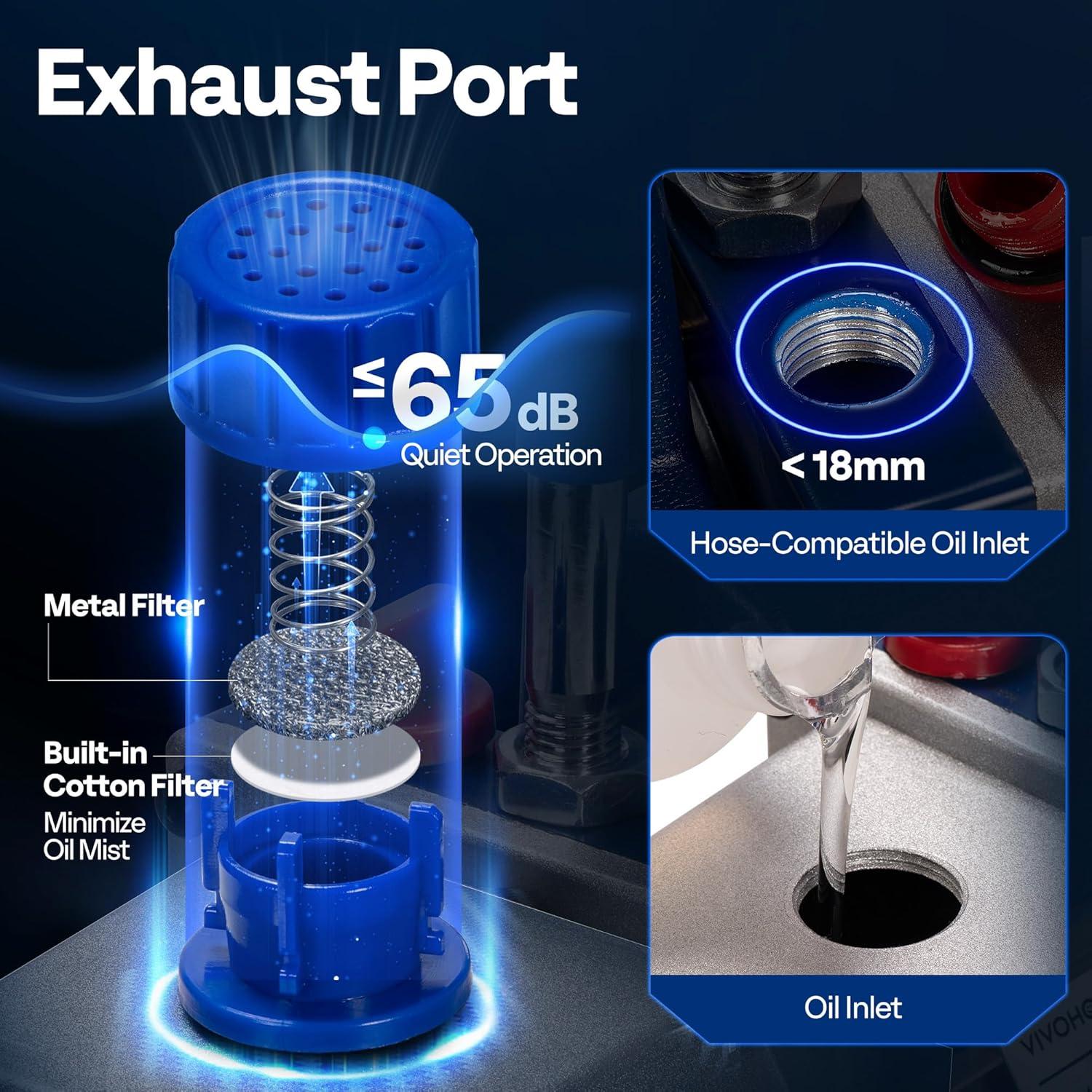

INTERNAL FILTRATION SYSTEM: The 304 stainless steel coarse filter inside the pump blocks unwanted particles from entering the chamber, while the exhaust port features a cotton filter layer to capture oil mist, helping reduce noise and ensuring clean operation

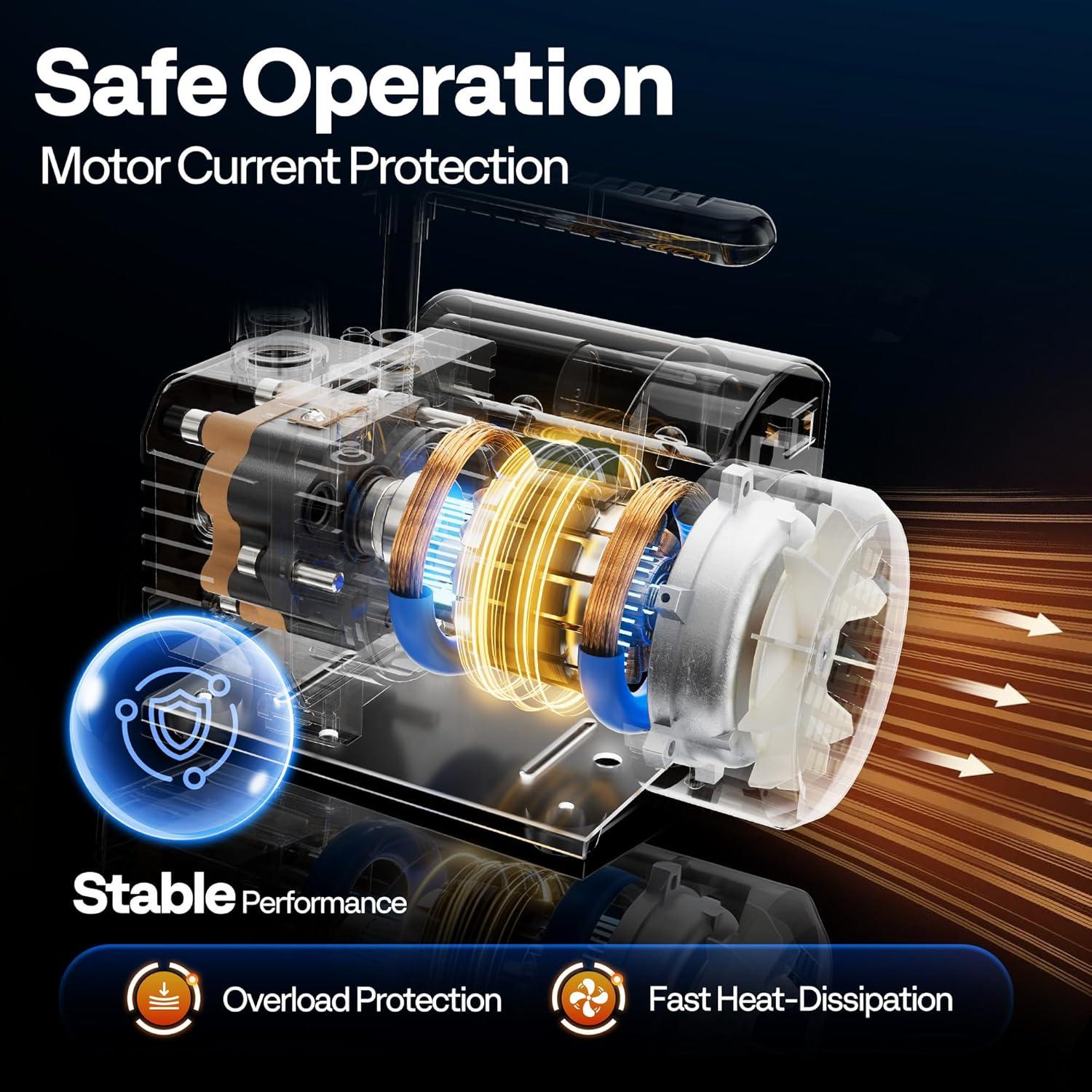

SAFE OPERATION: Built with integrated motor current protection and an efficient heat-dissipation structure to help prevent overload or abnormal operation; A built-in cooling fan supports stable performance when used within the recommended duty cycle

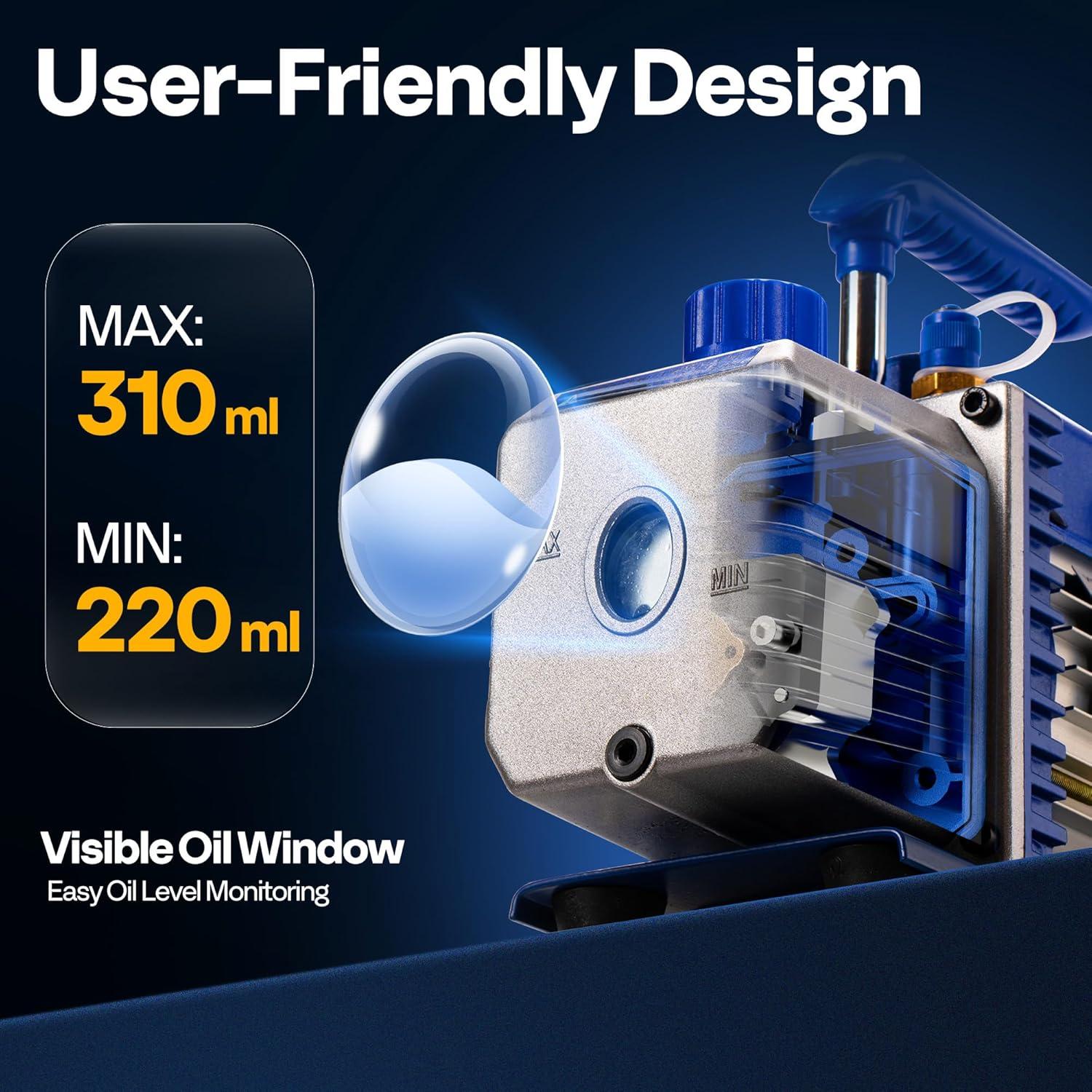

USER-FRIENDLY DESIGN: Features a visible oil window with scale marks, oil-filling port, and bottom drain valve for easier maintenance; Includes vacuum pump oil for quick HVAC working; Ergonomic handle and 11.6 lb weight make the pump easy to transport

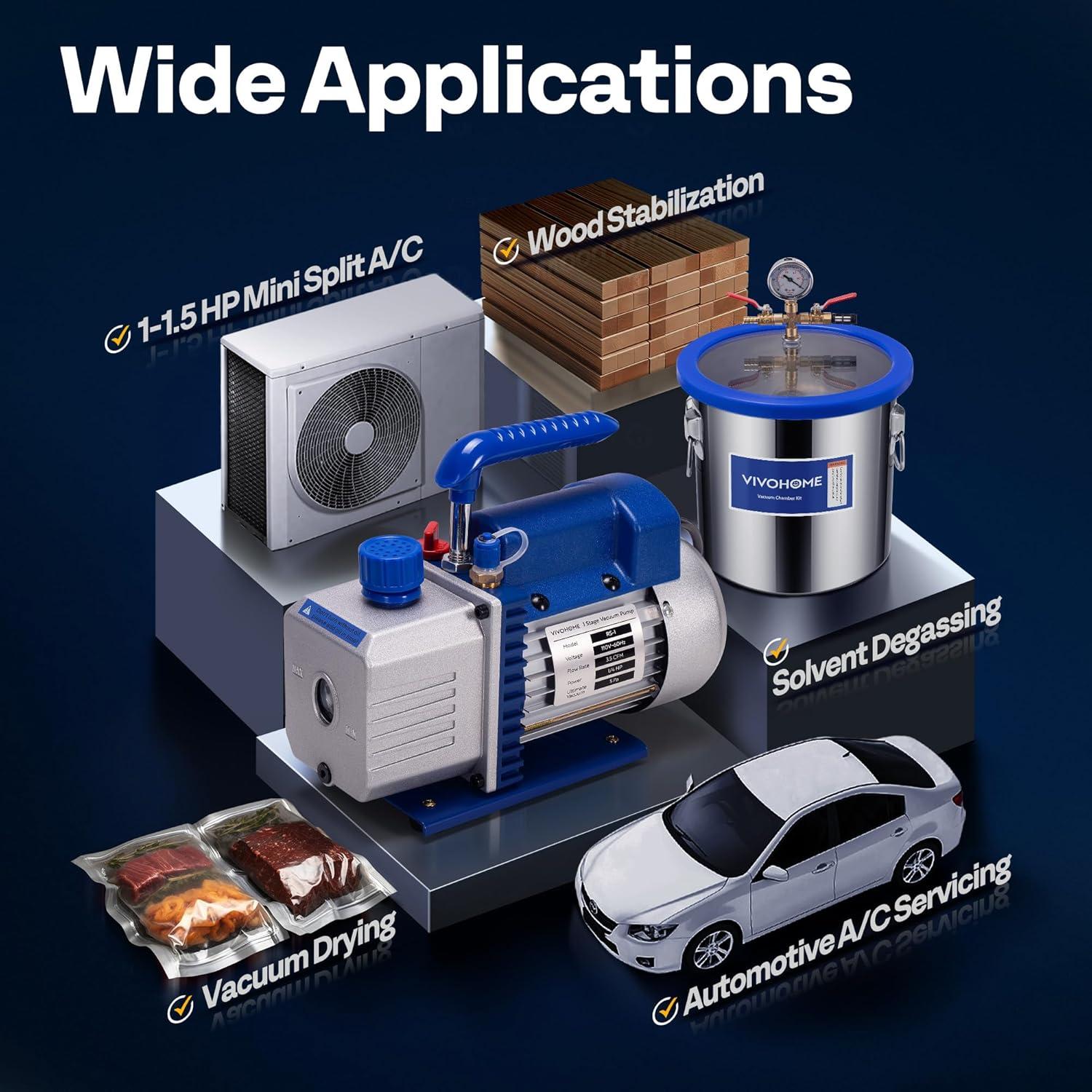

WIDE APPLICATION: Suitable for automotive A/C servicing, mini split installation (1–1.5 HP), vacuum packaging, material degassing, and other tasks requiring a single-stage rotary vane vacuum pump for DIY or intermittent professional use
